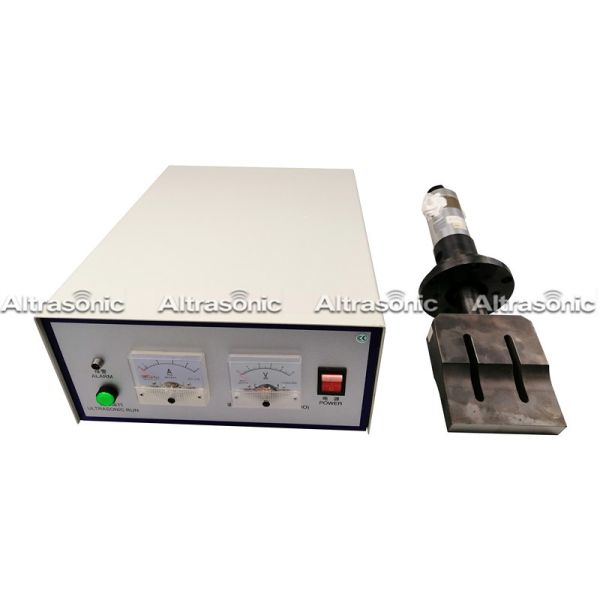

Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Specifications:
| Model | HSW20 |
| Frequency | 20K |
| Output power | 2000W |
| Frequency tuning method | Intermittent |
| Size | 410*600*180 mm |
| Voltage | 220V 50/60HZ |
| Net weight | 20kgs |
| Temperature | ≤300℃ |
| Moisture | ≤85%RH |
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations. Altrasonic 20kHz high-power transducer is suitable for ultrasonic welding machines for producing medical masks. Altrasonic researched and added matching horns to make the ultrasonic welding system run more stable. Perfectly adapted to the requirements of welding multilayer non-woven masks. In the era of pursuing energy saving and environmental protection, the ultrasonic automatic mask welding machine gradually emits luster.
Applications:
Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.
Ultrasound generator rear panel:
1. Drive the internal cooling fan of the power supply;
2. Vibrator and ultrasonic generator connection plug;
3. External control switch interface;
4. 220V power cord socket, there is a 6A fuse inside.
